Your Suzuki outboard’s lower unit plays a critical role in transferring engine power to the propeller. Whether you’re replacing a damaged gearcase, researching a repair, or trying to identify the correct lower unit for your engine, understanding the basics can help you make the right choice.
This guide covers Suzuki lower unit fitment, common problems, maintenance, and replacement considerations, along with tips for finding the correct parts for your outboard.
Shop Lower Units & Gearcases
Looking for a replacement gearcase? Browse our available Suzuki lower units or search your part number to check current pricing and availability.
Get Fitment Help
Backed by 40+ years of marine experience, our team can help identify part numbers and confirm lower unit fitment using your engine information.
Finding the Right Suzuki Lower Unit
Finding the correct replacement lower unit requires identifying the specific Suzuki outboard application. Horsepower alone should not be used to determine fitment.
Confirm the application using the engine model and serial number before ordering. Below are a few things to note when purchasing a Lower Unit.
Shaft Length
Suzuki outboards are available in different shaft lengths, and the correct lower unit must match the intended engine and installation.
Gear Ratio
Gear ratio determines the relationship between driveshaft speed and propeller-shaft speed. Different Suzuki outboard applications may use different gear ratios even when other engine specifications appear similar.
Rotation
Standard and counter-rotation lower units are used depending on the application. Counter-rotation is particularly important on certain multi-engine installations.
Existing Part Number
If you have the OEM Suzuki part number from the original assembly, it can help identify the replacement. Part numbers should still be checked against current Suzuki parts information because applications and available replacement numbers can change.
Understanding Your Suzuki Lower Unit
The lower unit, also commonly called the gearcase, is the lower portion of the outboard that transfers engine power to the propeller while operating underwater.
How the Lower Unit Works
Power from the engine travels through the driveshaft into the gearcase. Internal gears transfer that power to the propeller shaft, which turns the propeller and provides forward or reverse thrust.
Engine → Driveshaft → Gears → Propeller Shaft → Propeller

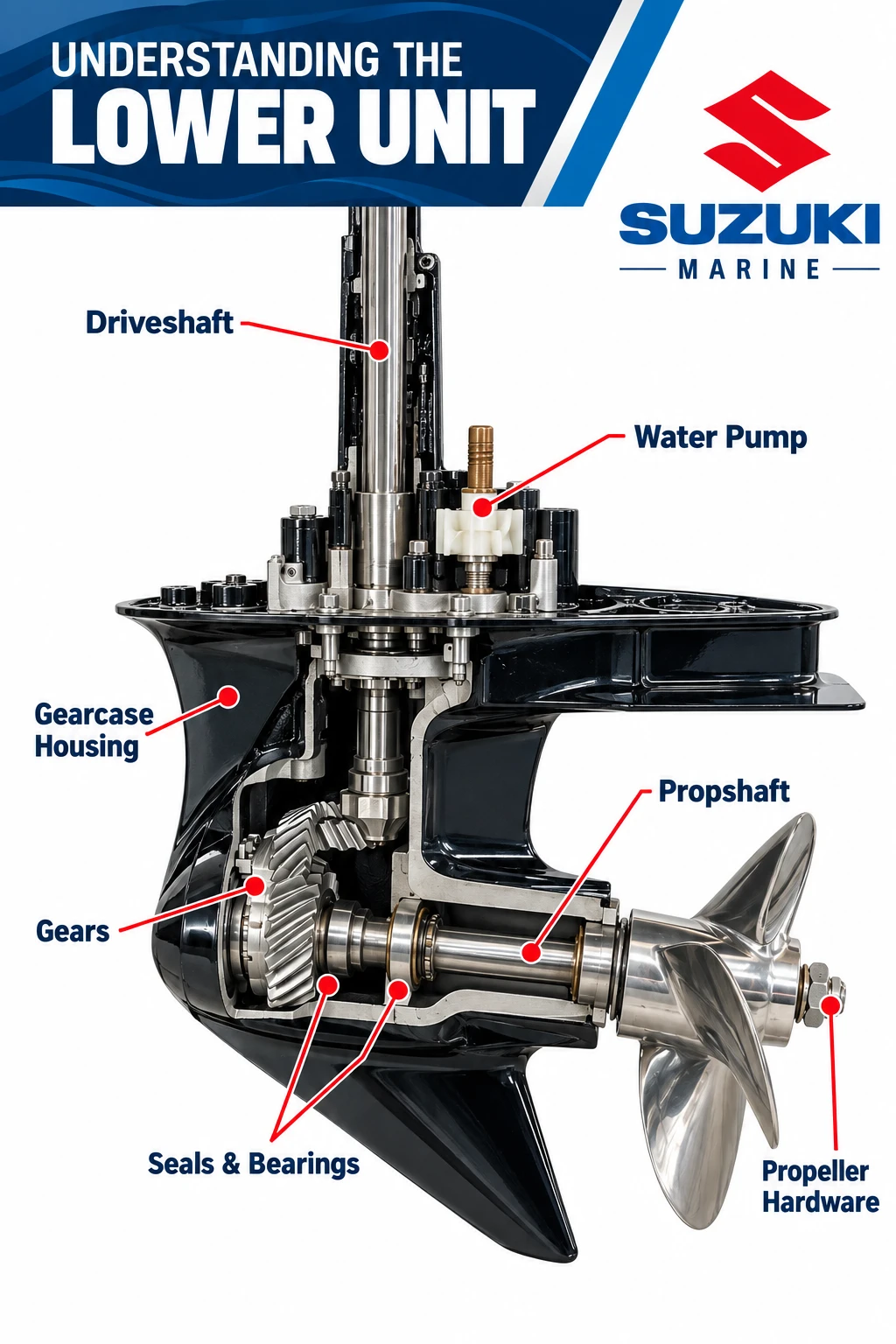

What's Inside a Suzuki Lower Unit?
Major components can include the gearcase housing, driveshaft, propeller shaft, gears, bearings, seals and related hardware. Gear oil lubricates and protects the internal gears and bearings.
The water pump is also located in the lower-unit area, but it is a separate serviceable system. A worn impeller or water-pump problem does not necessarily mean the gearcase itself has failed.
Repair or Replace a Suzuki Lower Unit?
Damage doesn't always require replacement of the complete lower unit. The right approach depends on the condition of the housing and internal components.
Repair The Lower Unit If:
The housing remains serviceable and the problem is limited to replaceable components such as seals, bearings, gears, shafts, or related internal parts.
Replace The Lower Unit If:
The housing is cracked or severely damaged, an impact has caused extensive internal damage, significant corrosion is present, or the cost of rebuilding approaches the cost of a complete replacement assembly.
Suzuki Lower Unit FAQs
Is a lower unit the same as a gearcase?
Generally, yes. Both terms are commonly used for the lower assembly of an outboard that contains the gears, shafts, bearings, seals, and related components that transfer power to the propeller.
Can I find my Suzuki lower unit by horsepower?
Horsepower can help narrow the application, but it should not be used by itself. Model, serial number, shaft length, gear ratio, rotation, and production information may be needed to confirm the correct assembly.
Can a damaged Suzuki lower unit be repaired?
In many cases, individual components can be repaired or replaced. More extensive housing or internal damage may make replacing the complete lower unit more practical.
Why is my Suzuki lower unit oil milky?
Milky gear oil can indicate that water has entered the gearcase. Suzuki advises correcting the source of the contamination rather than continuing to operate the outboard with contaminated lubricant.
Does a replacement Suzuki lower unit include a propeller?
Contents can vary by assembly. Check the individual product listing to determine exactly what is included before ordering.
How do I confirm which Suzuki lower unit I need?
Have your engine model and serial number available. Our team can use this information to help confirm the appropriate OEM application before you order.
Finding the correct Suzuki lower unit takes more than matching the horsepower on your outboard. Fitment can vary by model, production range, shaft length, rotation, gear ratio, and other engine-specific details.
This guide explains how Suzuki outboard lower units work, what information helps identify the correct replacement, and when repairing your existing gearcase may make more sense than replacing the complete assembly.
